CheerChef CCSO
Single Impingement Oven
Cooks up to 20 16” pizzas per hour

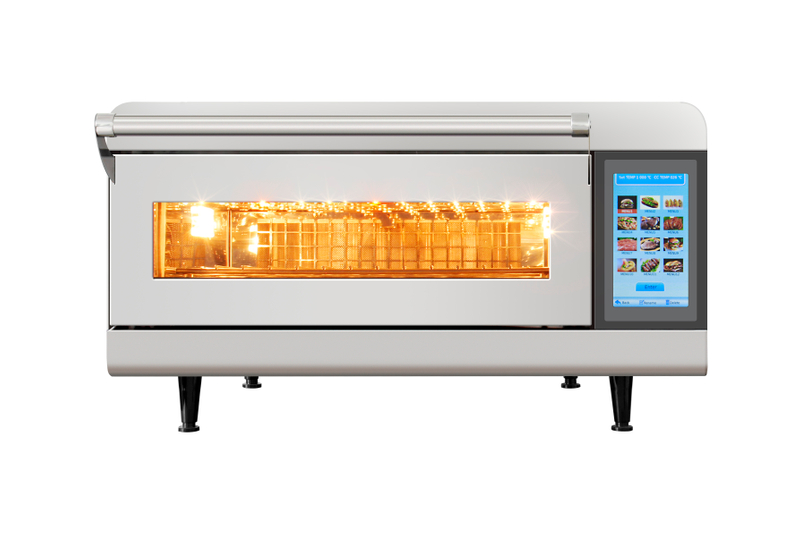

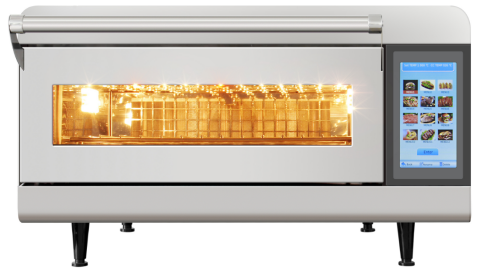

CCSO single oven shown
PERFORMANCE
The CCSO Single Oven has fully-insulated 304 stainless steel cook chambers, it utilizes variable speed blowers and catalytic converter to create a combination of top & bottom impinged air, resulting in high-speed cooking, high food quality, and ventless operation. It can evenly and consistently cook, bake, roast, toast, brown, and crisp foods much faster than conventional methods, provides superior cooking performance while requiring less space and consuming less energy.

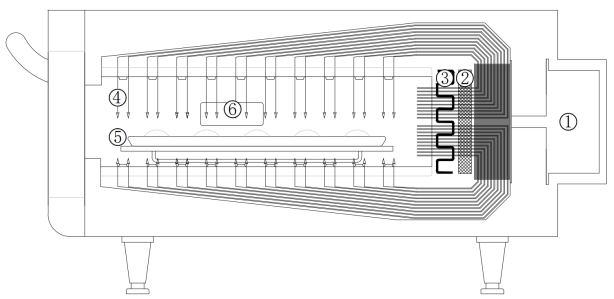

1. Blower Motor 2. Catalytic Converter 3. Impingement Heater 4. Variable-Speed Impinged Air 5. Removable Rack 6. Xenon Lights
EXTERIOR CONSTRUCTION
l Exterior 430 stainless steel.
l Surface mounted rubber seals
l Cool-to-touch exterior & operation panel.
l Dual front-facing 7-inch touchscreen display
l 4-inch adjustable legs
INTERIOR CONSTRUCTION
l Interior 304 stainless steel.
l Two fully-insulated, independent 304 stainless steel cook chambers.
l The combination of top & bottom impingement heating technology with variable speed recirculation system.
l Top and bottom jetplates.
l Removable wire rack.
STANDARD FEATURES
n Two depended cook chambers which can be controlled and operated separately.
n 47x43cm (18.3”x17”) large chamber cavity, ½ sheet pan, ⅔ GN pan, and 16-inch pizza capacity per cavity.
n Two depended touch mode friendly interface with smart menu system, controls are intuitive and simple to use.
n Both “℃” and “℉” available
n Smart menu system capable of storing up to 432 recipes, provide multi-stage programming/cooking (Up to 6 stages for each recipe).
n Three “Set TEMP” modes to meet different temperature requirement and enables you to create and manage the recipes classically.
n Temperature setting: 5-280℃ (41-536F)
n Variable-speed, vertically-recirculated air convection and impingement, heat, brown, and crisp powerfully and intelligently as you wish with low noise.
n Menu programming application on PC, Remote transmission via internet & USB flash disk to transfer menu system.
n No oil-smoke design and built-in catalytic converter which break down grease-laden vapors, allowing for ventless operation.
n Easy to clean.
n Warranty- one year.

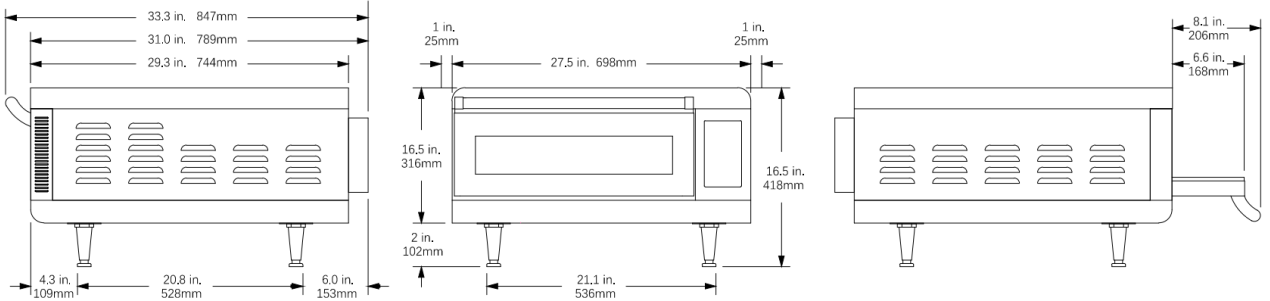

DIMENSIONS | ||
Overall | ||
Width | 27.5” | 698 mm |
Depth | 31.0” | 789 mm |
Height (with legs) | 16.5” | 418 mm |
Weight | 155 lb. | 70 kg |
Chamber | ||
Width | 18.3” | 466 mm |
Depth | 17.0” | 430 mm |
Height | 4.6” | 116 mm |
Height (Grill-Top) | 3.4” | 86 mm |
Volume | 0.82 cu.ft. | 23.2 liters |
SPECIFICATIONS | |
Model | CCSO |
Max Current | 30A |
Max Input Power | 5500w |
Impingement Heat | 5500w |
Consumption in Cooking | 3000w |
Consumption in Standby | 800w |
Noise in Standby Mode | AVG 45 dB |
Noise in Cooking Mode | AVG 55dB |
How it works | Impinged, Convection, Catalytic Converter, Smart Menu System |
Display | 7“ Touch display |
Temp Mode | 3- mode |
Convection Type | Top & Bottom |
Programmable Settings | 432 recipes |
Program Menu | Multi-level menu capability |
Temp Setting | 0-280℃ in 2℃ steps. 41-536℉ in 9℉ steps. |
Time Setting | 00:00-59:50 in 10s steps |
Fan Setting | 10-100% in 1% steps |
Edit | Edit recipe data and images on both PC and ovens |
Load | USB port to load recipes and images |
POWER REQUIREMENTS & OUTPUT
Model | Electrical Supply | Power Output | ||||
Voltage | Phase | Connections Used | Plug * | Max. Power Input | Impinged | |
CCSO | 208-240v | Single Phase | L+N+E | 30A | 5500w | 5500w |
380-440v | 3-Phase/ wye | 3L+N+E | 16A | 5500w | 5500w | |
380-440v | 3-Phase/ delta | 3L+E | 16A | 5500w | 5500w | |
* This is plug current rating per phase, not consumption.
INCLUDED ACCESSORIES : 1 oven shovel, 1 wire grill, 1 Teflon® coated solid bottom basket, 1 Teflon® coated mesh weave basket. |
Cheerchef reserves the right to make the changes to the design or specifications without prior notice.
Jinan Jiatai Electric Appliance Co., Ltd
