EC Series Claasic/Economic High-speed Oven

High-Speed |Combi Cooking

20 times faster than a conventional oven

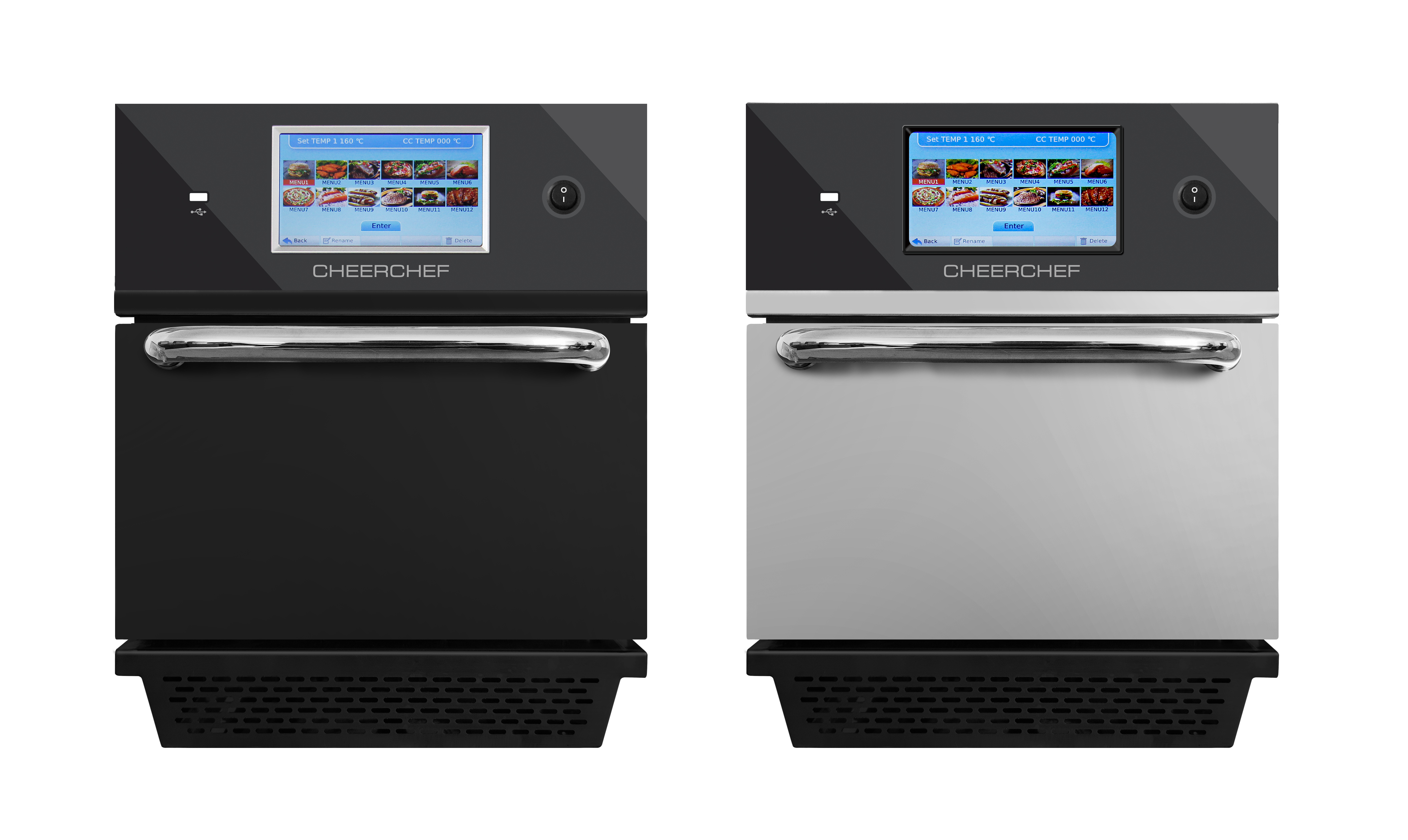

      EC series high speed ovens shown

PERFORMANCE

The EC series high-speed accelerated cooking oven utilizes a combination of forced/tuned convection hot air and top launched microwave to shorten the cook times significantly. It can evenly and consistently cook, bake, roast, toast, brown, and crisp foods up to 20

times faster than conventional methods, resulting in a high level of throughput without compromising quality, the EC provides superior cooking performance while requiring less space and consuming less energy.

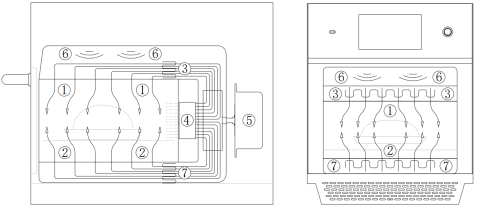

1. Top Forced Variable-Speed Convection Hot Air       2. Bottom Forced Variable-Speed Convection Hot Air    3. Top Tuned Convection Heater 4. Catalytic Converter   5. Blower Motor 6. Top-Launched Microwave System 7. Bottom Tuned Convection Heater

EXTERIOR CONSTRUCTION

l Exterior 430 stainless steel or black finishing

l Cool-to-touch exterior.

INTERIOR CONSTRUCTION

l Interior 304 stainless steel.

l Insulated cook chamber.

l Removable metal rack.

STANDARD FEATURES

n Touch interface with smart menu system, controls are intuitive and simple to use, five power supply: 13A,15A,16A,20A,30A.

n 31.2cm x 31.2cm (12.3” x 12.3”) cavity in a 33.8cm (15”) width footprint.

n Control language for operation: Chinese, English, German, French, Spanish, Portuguese.

n Three “Set TEMP” modes to meet different temperature requirement.

n Temperature setting: 5-270℃ (41-518℉)

n Total 432 recipes with multi-stage programming (Up to 6 stages for each recipe).

n Top launched dual microwave systems, rapid cook evenly, consistently and rapidly.

n Variable-speed, vertically-recirculated hot air forced convection, heat, brown, and crisp powerfully and intelligently as you wish with low noise.

n Menu programming application on PC, Remote transmission via internet & USB flash disk to transfer menu system,

n No oil-smoke design and built-in catalytic converter which break down grease-laden vapors, allowing for ventless operation, needless to ventilation and smoke exhaustion system.

n Allows metal trays, pans, screens, simplifies.

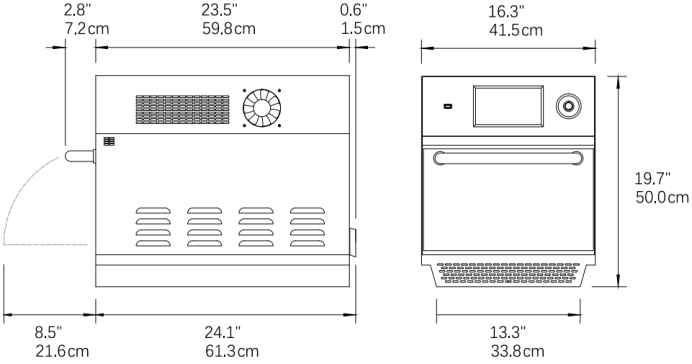

DIMENSIONS & SPECIFICATIONS:

POWER REQUIREMENTS & OUTPUT

INCLUDED ACCESSORIES

1 wire grill, 1 oven shovel, 1 Teflon® coated solid bottom basket, 1 Teflon® coated mesh weave basket.

Cheerchef reserves the right to make the changes to the design or specifications without prior notice.

Jinan Jiatai Electric Appliance Co., Ltd
