Availability: | |
---|---|
| |
High-Speed |Combi Cooking - 20 times faster than a conventional oven
PERFORMANCE

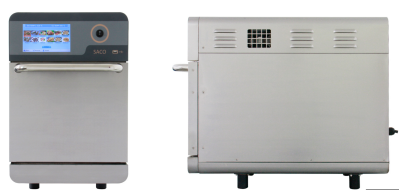

The SACO V1 series high-speed accelerated cooking oven utilizes a combination of forced convection, high speed tuned impinged air, top launched microwave to shorten the cook times significantly. It can evenly and consistently cook, bake, roast, toast, brown, and crisp foods up to 20 times faster than conventional methods, resulting in a high level of throughput without compromising quality, the SACO V1 provides superior cooking performance while requiring less space and consuming less energy.
1. Forced Convection 2. Variable-Speed Impinged Air
3. Top Tuned Impingement Heater 4. Catalytic Converter 5. Blower Motor 6. Top-Launched Microwave System
7. Bottom Tuned Impingement Heater
EXTERIOR CONSTRUCTION
l Exterior 430 stainless steel.
l Cool-to-touch exterior.
INTERIOR CONSTRUCTION
l Interior 304 stainless steel.
l Insulated cook chamber.
l Removable metal rack and bottom jetplate.
l Removable turntable (option).
STANDARD FEATURES
Touch interface with smart menu system, controls are intuitive and simple to use, five power supply: 13A,15A,16A,20A,30A.
32cm x 32cm (12.6” x 12.6”) cavity in a 38.3cm (15”) width footprint.
Control language for operation: Chinese, English, German, French, Spanish, Portuguese.
Three “Set TEMP” modes to meet different temperature requirement.
Temperature setting: 0-280℃ (0-536F)
Total 432 recipes with multi-stage programming (Up to 6 stages for each recipe).
Top launched dual microwave system, cook evenly, consistently and rapidly.
Variable-speed, vertically-recirculated hot air convection and impingement, can heat, brown, and crisp powerfully and intelligently as you wish with low noise.
Stirrer to help ensure even distribution of air and microwave.
Menu programming application on PC, Remote transmission via internet & USB flash disk to transfer menu system,
No oil-smoke design and built-in catalytic converter which break down grease-laden vapors, allowing for ventless operation, needless to ventilation and smoke exhaustion system.
Boosting heating function ensure preheating within 12 minutes, improve ability of keeping desired temperature
Rapid cooling down function ensure cooling down within 12 minutes.
Customized turntable (optional)
Allows metal trays, pans, screens, simplifies.
DIMENSIONS & SPECIFICATIONS:
DIMENSIONS | ||
Overall | ||
Width | 15.0” | 383 mm |
Depth | 27.3” | 693 mm |
Height (with legs) | 24.0” | 610 mm |
Weight (standard power/ high power) | 143/169 lb. | 65/77 kg |
Chamber | ||
Width | 12.6” | 320 mm |
Depth | 12.6” | 320 mm |
Height | 7.7” | 195 mm |
Height (Rack-Top) | 6.0” | 150 mm |
Volume | 0.71 cu.ft. | 20 liters |
SPECIFICATIONS | |||||
Power Type | Standard Power | Medium Power | High Power | ||
Model | SACO V1-13A** | SACO V1-15A* | SACO V1-16A * | SACO V1-20A** | SACO V1-30A * |
Max Current | 13A | 15A | 16A | 20A | 30A |
Max Input Power | 2900w | 3300 | 3500w | 4500w | 6500w |
100% Microwave | 1050w | 1050w | 1050w | 1050w | 2100w |
Impingement Heat | 2750w | 2950w | 3500w | 4200w | 5100w |
Combination Mode | 1050w + 1150w | 1050w + 1350w | 1050w + 1900w | 1050w + 2600w | 2100w + 3500w |
Consumption in Cooking | 1300w | 1400w | 1500w | 1700w | 2200w |
Consumption in Standby | 400w | 500w | 600w | 700w | 800w |
Noise in Standby Mode | AVG 43 dB | AVG 43 dB | AVG 43 dB | AVG 43 dB | AVG 43 dB |
Noise in Cooking Mode | AVG 53 dB | AVG 53 dB | AVG 53 dB | AVG 53 dB | AVG 54 dB |
How it works | Microwave, Impinged, Convection, Catalytic Converter, Smart Menu System | ||||
Display | 7“ Touch display | ||||
Temp Mode | 3- mode | ||||
Convection Type | Top & Bottom | ||||
Programmable Settings | 432 recipes | ||||
Program Menu | Multi-level menu capability | ||||
Temp Setting | 0-280℃ in 2℃ steps. | ||||
Time Setting | 00:00-59:50 in 10s steps | ||||
Micro Setting | 0-100% in 10% steps | ||||
Fan Setting | 10-100% in 1% steps | ||||
Edit | Edit recipe data and images on both PC and ovens | ||||
Load | USB port to load recipes and images |
* The recommended model, usually kept in stock and regularly available. * * Not in stock.
POWER REQUIREMENTS & OUTPUT
Model | Electrical Supply | Power Output | |||||||
Voltage | Phase | Connections | Plug * | Max. Power Input | 100% Microwave | Impinged | Combi Mode | ||
Standard Power | SACO V1-13A | 208-240v | Single Phase | L+N+E | 13A | 2900w | 1050w | 2750w | 1050w + 1150w |
SACO V1-15A | 208-240v | Single Phase | L+N+E | 15A | 3200w | 1050w | 2950w | 1050w + 1350w | |
SACO V1-16A | 208-240v | Single Phase | L+N+E | 16A | 3500w | 1050w | 3500w | 1050w + 1900w | |
SACO V1-20A | 208-240v | Single Phase | L+N+E | 20A | 4500w | 1050w | 4200w | 1050w + 2600w | |
High Power | SACO V1-30A | 208-240v | Single Phase | L+N+E | 30A | 6500w | 2100w | 5100w | 2100w + 3500w |
380-440v | 3Phase/ wye | 3L+N+E | 20A | 6500w | 2100w | 5100w | 2100w + 3500w | ||
380-440v | 3Phase/ delta | 3L+E | 20A | 6500w | 2100w | 5100w | 2100w + 3500w |
* This is plug current rating per phase, not consumption.
INCLUDED ACCESSORIES
1 wire grill, 1 oven shovel, 1 Teflon® coated solid bottom basket, 1 Teflon® coated mesh weave basket.
Cheerchef reserves the right to make the changes to the design or specifications without prior notice.
Jinan Jiatai Electric Appliance Co., Ltd
