High-Speed |Combi Cooking
20 times faster than a conventional oven

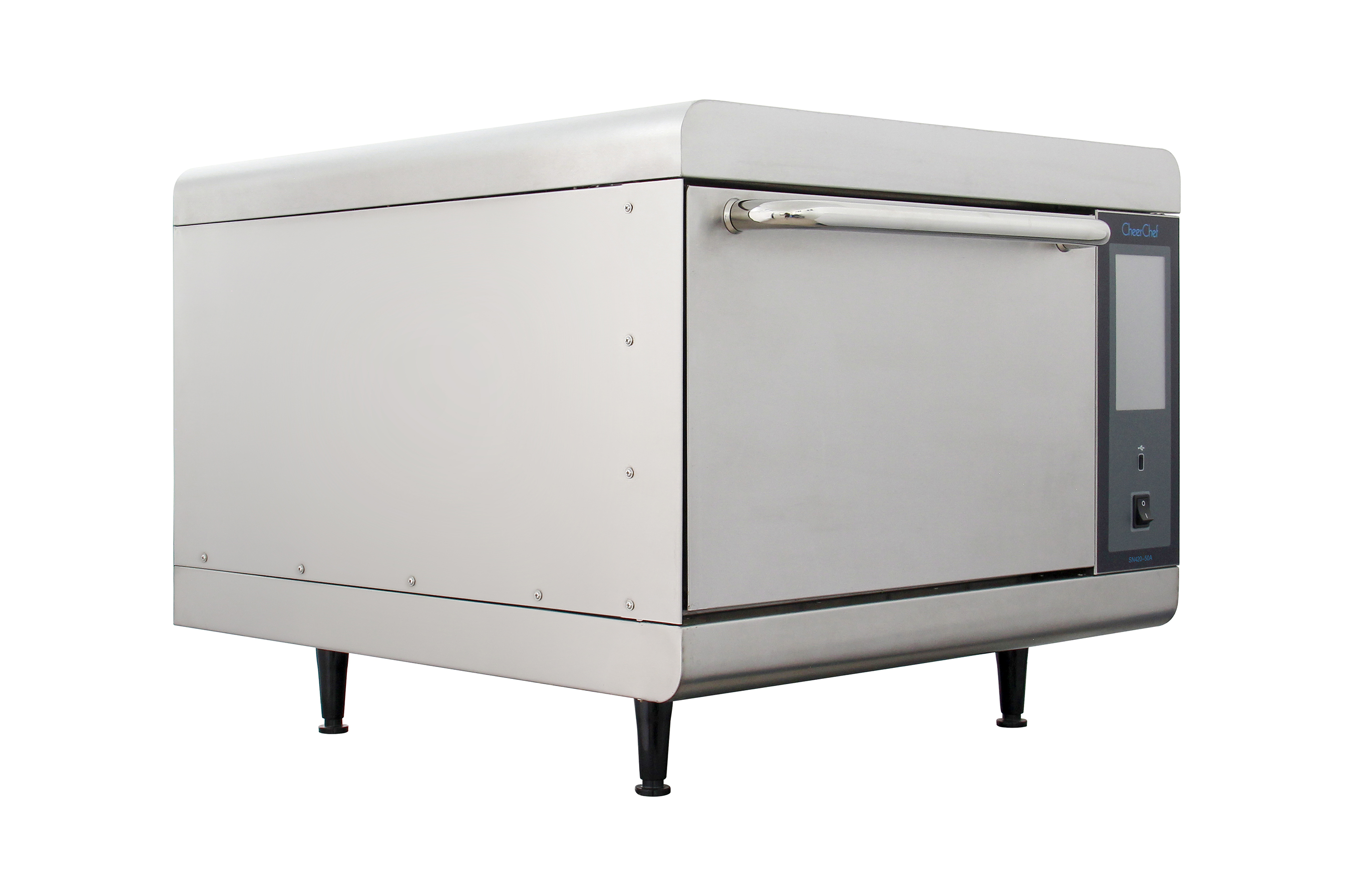

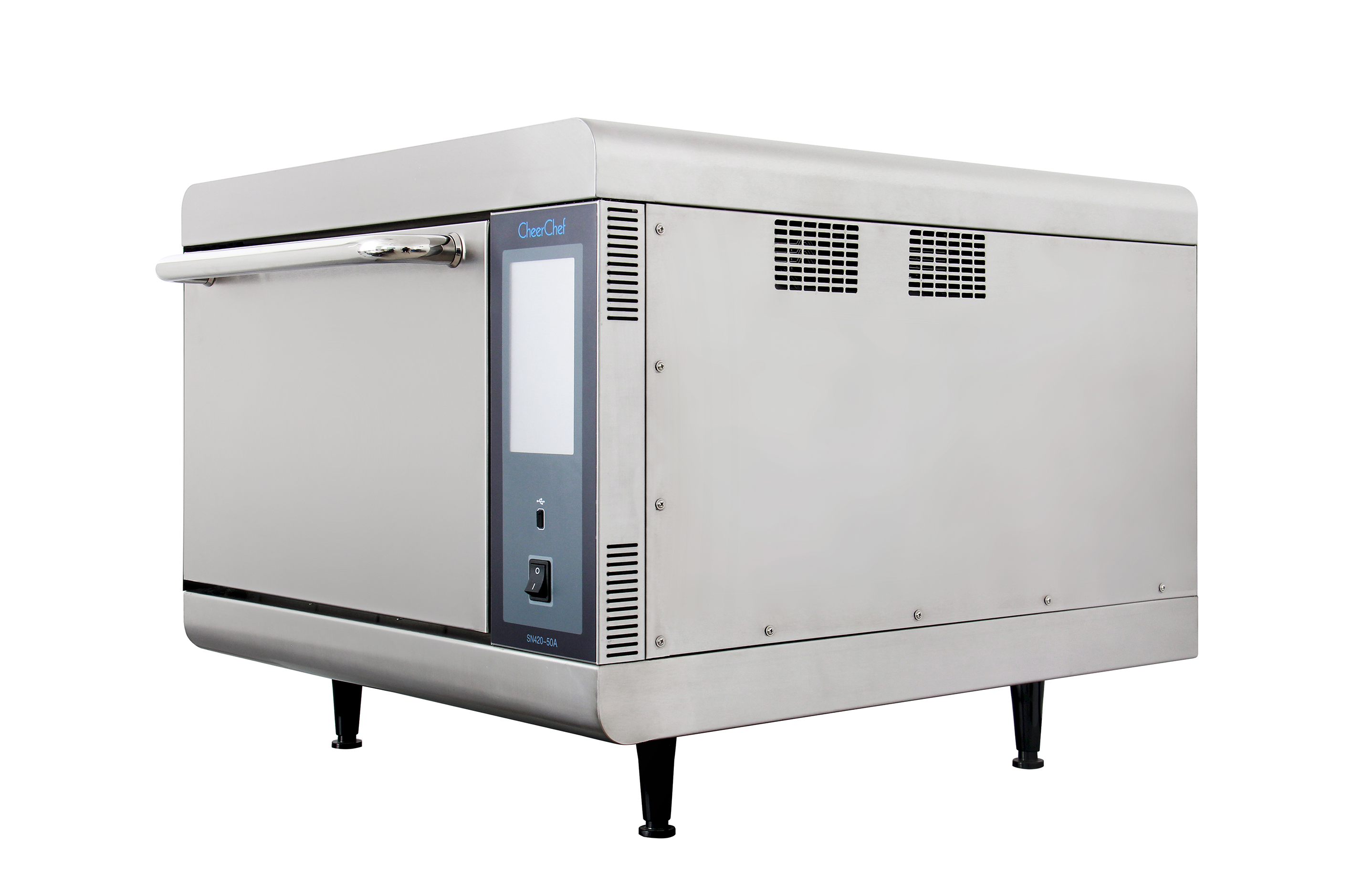

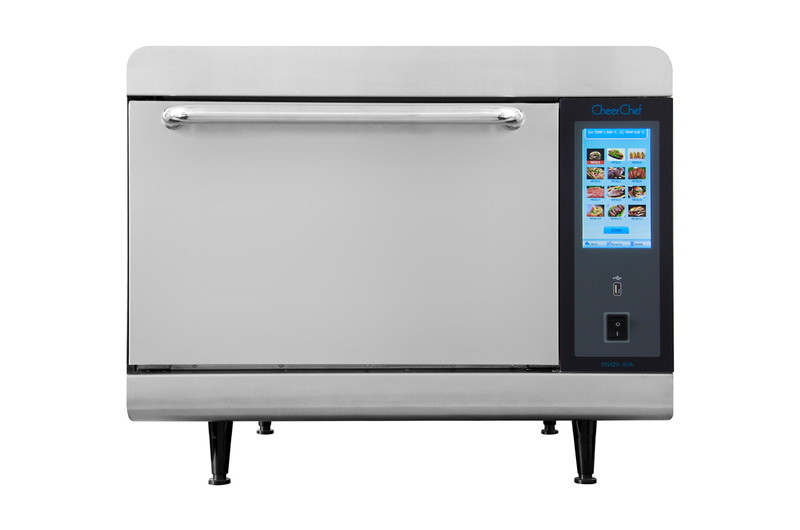

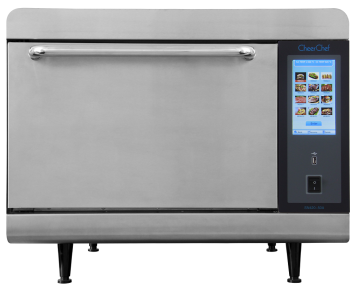

SN420-50A model high speed oven shown
PERFORMANCE
The SN420-50A model high-speed accelerated cooking oven utilizes a combination of top and bottom forced convection, high speed impinged air, Bottom high power infrared, top launched twins microwave to shorten the cook times significantly. It can evenly and consistently cook, bake, roast, toast, brown, and crisp foods up to 20 times faster than conventional methods, resulting in a high level of throughput without compromising quality, it provides superior cooking performance while requiring consuming less energy.

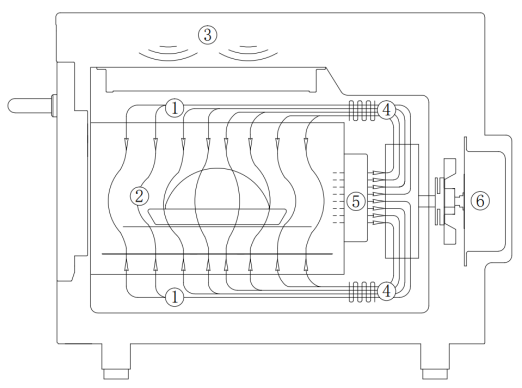

1. Forced Convection 2. Variable-Speed Impinged Air 3. Top-Launched dual Microwave 4. Impingement Heater 5. Catalytic Converter 6. Motor
EXTERIOR CONSTRUCTION
l Exterior 430 stainless steel.
l Cool-to-touch exterior.
l Adjustable legs.
INTERIOR CONSTRUCTION
l Interior 304 stainless steel.
l Insulated cook chamber.
l Removable metal rack, wire grill, bottom jetplate, and bottom infrared kit.
STANDARD FEATURES
n 47x47cm (18.5”x18.5”) large chamber cavity, suitable for ½ sheet pan, ⅔ GN pan, and 18-inch pizza.
n Touch mode friendly interface with smart menu system, controls are intuitive and simple to use.
n Operation language: Chinese, English, German, French, Russian, Spanish, Portuguese.
n Three “Set TEMP” modes to meet different temperature requirement.
n Temperature setting: 0-280℃ (0-536F)
n Total 432 recipes with multi-stage programming (Up to 6 stages/each recipe).
n Top launched dual microwave system, cook evenly, consistently and rapidly.
n Variable-speed, vertically-recirculated air convection and impingement, can heat, brown, and crisp powerfully and intelligently as you wish with low noise.
n Stirrer to help ensure even distribution of hot air and microwave.
n Menu programming application on PC, Remote transmission via internet & USB flash disk to transfer menu system.
n No oil-smoke design and built-in catalytic converter which break down grease-laden vapors, allowing for ventless operation.
n Rapid cooling down function ensure cooling down within 12 minutes.
n Customized turntable (optional)
n Allows metal trays, pans, screens, simplifies.

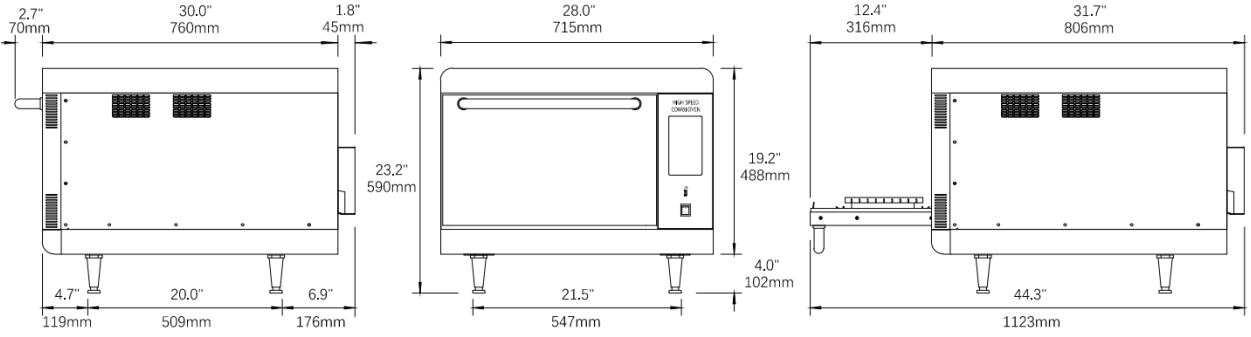

DIMENSIONS & SPECIFICATIONS:
DIMENSIONS | ||
Overall | ||
Width | 28.0” | 715 mm |
Depth | 31.8” | 806 mm |
Height (with legs) | 23.2” | 590 mm |
Weight | 240 lb. | 110 kg |
Chamber | ||
Width | 18.3” | 466 mm |
Depth | 18.3” | 466 mm |
Height | 8.1” | 205 mm |
Height (Grill-Top) | 5.9” | 150 mm |
Volume | 1.57 cu.ft. | 44.5 liters |
SPECIFICATIONS | |
Model | SN420-50A |
Max Current | 50A |
Max Input Power | 10000w |
100% Microwave | 2100w |
Impingement Heat | 7200w |
Combination Mode | 2100w + 7200w |
Consumption in Cooking | 2600w |
Consumption in Standby | 1000w |
Noise in Standby Mode | AVG 43 dB |
Noise in Cooking Mode | AVG 54 dB |
How it works | Microwave, Impinged, Convection, Catalytic Converter, Smart Menu System |
Display | 7“ Touch display |
Temp Mode | 3- mode |
Convection Type | Top & Bottom |
Programmable Settings | 432 recipes |
Program Menu | Multi-level menu capability |
Temp Setting | 0-280℃ in 2℃ steps. |
Time Setting | 00:00-59:50 in 10s steps |
Micro Setting | 0-100% in 10% steps |
Fan Setting | 10-100% in 1% steps |
Edit | Edit recipe data and images on both PC and ovens |
Load | USB port to load recipes and images |
POWER REQUIREMENTS & OUTPUT
Model | Electrical Supply | Power Output | ||||||
Voltage | Phase | Connections | Plug * | Max. Power Input | 100% Microwave | Impinged | Combi Mode | |
SN420-50A | 208-240v | Single Phase | L+N+E | 50A | 10000w | 2100w | 7200w | 2100w + 7200w |
380-440v | 3Phase/ wye | 3L+N+E | 30A | 10000w | 2100w | 7200w | 2100w + 7200w | |
380-440v | 3Phase/ delta | 3L+E | 30A | 10000w | 2100w | 7200w | 2100w + 7200w | |
* This is plug current rating per phase, not consumption.
INCLUDED ACCESSORIES
1 wire grill, 1 oven shovel, 1 Teflon® coated solid bottom basket, 1 Teflon® coated mesh weave basket.
Cheerchef reserves the right to make the changes to the design or specifications without prior notice.
Jinan Jiatai Electric Appliance Co., Ltd
