High-Speed | Combi Cooking
18 times faster than a conventional oven

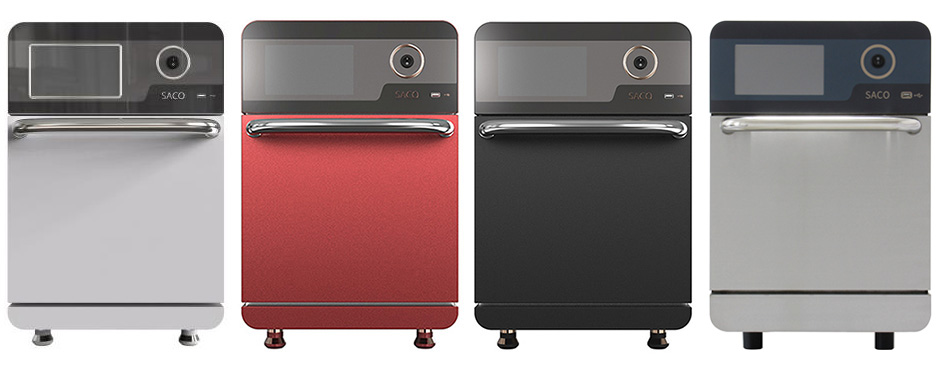

Model SACO shown
High speed accelerated cooking countertop oven Performance
The SACO model high-speed accelerated cooking oven utilizes a combination of forced convection, high speed tuned impinged air, top launched microwave to shorten the cook times significantly. It can evenly and consistently cook, bake, roast, toast, brown, and crisp foods up to 18 times faster than conventional methods, resulting in a high level of throughput without compromising quality, the SACO provides superior cooking performance while requiring less space and consuming less energy.

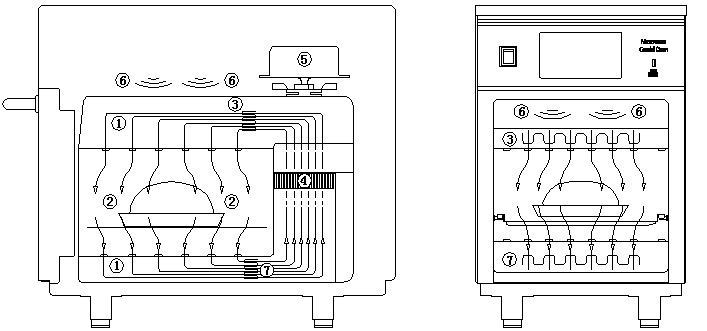

1. Forced Convection; 2. Variable-Speed Impinged Air; 3. Top Tuned Impingement Heater; 4. Catalytic Converter; 5. Blower Motor; 6. Top-Launched Microwave System; 7. Bottom Tuned Impingement Heater
Exterior Construction
1. Exterior stainless steel, black, red.
2. Cool-to-touch exterior.
3. Adjustable legs.
Interior Construction
1. Interior 304 stainless steel.
2. Insulated cook chamber.
3. Removable metal rack and bottom jetplate.
4. Removable turntable (option).
Top-speed with lower noisy
Quiet – AVG 48 dB in standby mode
Uses less energy AVG 2.0kw/h
Standard Features
1. Touch mode interface with smart menu system, controls are intuitive and simple to use. Three power supply: 32A, 16A, 13A.
2. 32cm x 32cm (12.6” x 12.6”) cavity in a 38.3cm (15”) width footprint.
3. Control language for operation: Chinese, English, German, French, Spanish, Portuguese, Spanish, Turkish.
4. Three “Set TEMP” modes to meet different temperature requirement.
5. Temperature setting: 0-280℃ (0-536F)
6. Total 432 recipes with multi-stage programming (Up to 6 stages for each recipe).
7. Top launched dual microwave system, cook evenly, consistently and rapidly.
8. Variable-speed, vertically-recirculated air convection and impingement, can heat, brown, and crisp powerfully and intelligently as you wish with low noise.We Are High Speed Countertop Cooking Oven Manufacturer and Provide High Speed Countertop Cooking Oven.
9. Stirrer to help ensure even distribution of air and microwave.
10. Edit recipe and image on both oven and PC
11. USB port to load recipes and photos
12. No oil-smoke design and built-in catalytic converter which break down grease-laden vapors, allowing for ventless operation, needless to ventilation and smoke exhaustion system.
13. Allows use of the metal trays, pans, screens, simplifies cooking.
14. Built-in self-diagnostics.
15. Infra-red elements tilt-up for cleaning
16. Easy to clean; Warranty- one year.
| Dimensions | ||
| Overall | ||
| Width | 15.0” | 383 mm |
| Depth | 27.3” | 693 mm |
| Height | 24.0” | 610 mm |
| Weight: 32A/16A | 169/143 lb. | 77/ 65kg |
| Chamber | ||
| Width | 12.6” | 320 mm |
| Depth | 12.6” | 320 mm |
| Height | 7.7” | 195 mm |
| Height (Rack-Top) | 6.0” | 150 mm |
| Volume | 0.71 cu.ft. | 20 liters |
| Wall Clearance | ||
| Top | 2” | 50 mm |
| Sides | 1” | 25 mm |
| Wooden Case | ||
| Width | 17.6” | 446 mm |
| Depth | 34.1” | 866 mm |
| Height | 29.8” | 756 mm |
| Specifications | ||
| Function Type | SACO-32A | SACO-16A |
| Cooking Speed | 18 times faster | 10 times faster |
| 100%Microwave | 2-Mag/ 2200w | 1-Mag/ 1100w |
| Impingement | 2-heater/3800w | 1-heater/1600w |
| Combi mode | 2200w+3800w | 1100w+1600w |
| Max Power | 6500 w | 3500w |
| Max Current | 32A | 16A |
| Power Source | Single Phase, 208-250VAC, 35A, 50/60 Hz. | Single Phase 208-250VAC, 16A, 50/60 Hz. |
| 3-Phase, wye, 380-440VAC, 20A, 50/60 Hz. | ||
| Frequency | 2450MHz | |
| Configuration | Countertop | |
| Display | Touch display | |
| Temp Mode | 3- mode | |
| Programmable Settings | 432 recipes | |
| Program Menu | Multi-level menu capability | |
| Temp Setting | 0-280℃ in 2℃ steps. | |
| Time Setting | 00:00-59:50 in 10s steps | |
| Micro Setting | 0-100% in 10% steps | |
| Fan Setting | 10-100% in 1% steps | |
| Edit | Can edit recipe data and images on both PC and ovens | |
| Load | USB port to load recipes and images | |
| Rack | Removable rack | |
| Turntable | Removable turntable (option) | |
| Door Opening | Pull down | |
| Exterior Finish | Stainless steel, Black, Red, Gray | |
| Interior Finish | 304 Stainless steel | |
| Cook Time ( Model SACO-32A ) | |
| 9”Pizza-Fresh Dough(600g) | 60 s |
| 9”Pizza-Parbaked, Refrigerated | 40 s |
| 9”Cheese Pizza | 40 s |
| Cone pizza (Qty 12) | 100 s |
| 12”Pizza-Parbaked, Refrigerated | 60 s |
| 6”Sub Sandwich | 20 s |
| 12”Sub Sandwich | 20 s |
| 12”Sub Sandwich (Qty 2) | 30 s |
| 6” Hamburger (Qty 2) | 20 s |
| 6” Hamburger (Qty 4) | 30 s |
| Breakfast Sandwich (Qty 4) | 20 s |
| Muffin (Qty 4) | 30 s |
| Cinnamon Rolls (frozen, par-baked)-Qty 6 | 40 s |
| French Fries (2x170g) | 90 s |
| French Fries (4x170g) | 110 s |
| Apple Strudel (300g) | 70 s |
| Nachos (120g) | 20 s |
| 6 oz Salmon | 60 s |
| Sausages (15x56g) | 90 s |
| Steak (600g) | 210 s |
| Chicken Wings-8-count, Frozen | 100 s |
| Chicken Tenders (frozen, 900g) | 140 s |
| Roast Meat (block, 650g) | 140 s |
| Roast Chicken (duck, 1250g) | 300 s |
Accessories
1. fixed rack
2. set of plate
3. set of teflon blanket
4. bread/pizza shovel.
Options
Turntable
high-speed accelerated cooking countertop oven Application
| Quick Service Restaurants | Western Restaurant | Coffee Bars | Fastfood Noshery | Contract Catering | Concessions, Franchise Stores | Pizza Restaurants | Bakeries | Barbecue | Cstores | Food Court | Quick Casual | Hotels | Pubs | Restaurants | Railway Catering | Motorway Catering Services| Full Service Restaurants |
Important: CheerChef requires installing a type D circuit breaker for all installations.We Are High Speed Countertop Cooking Oven Manufacturer and Provide High Speed Countertop Cooking Oven.
